I’ve never found a good source for Sargent planes with pictures. Much information can be found at http://www.sargent-planes.com. This should help supplement that and other sites. I’ll continue to add information as I find it.

I don’t sell a lot of Sargent planes, but its possible I have a few. If I do, they will be found on my Tools For Sale Page.

I want to thank all those who have helped by sending me pictures and information.

7 Smooth Plane

P1010007

Sargent #7

P1010002

Sargent #7

P1010006

Sargent #7



7C Corrugated Bottom Smooth Plane

8 Smooth Plane

clip_image001

8 Smooth Plane

8C Corrugated Bottom Smooth Plane

clip_image002

8C Corrugated Bottom Smooth Plane

9 Smooth Plane

clip_image003

9 Smooth Plane

9C Corrugated Bottom Smooth Plane

clip_image004

Sargent 9C Corrugated Bottom Smooth Plane

10 Smooth Plane



10C Corrugated Bottom Smooth Plane

14 Jack Plane

clip_image005

Sargent 14 Jack Plane

14C Corrugated Bottom Jack Plane

clip_image006

15 Jack Plane (More info available)

clip_image007clip_image008clip_image009clip_image010clip_image011

15C Corrugated Bottom Jack Plane

18 Fore Plane

clip_image012

18C Corrugated Bottom Fore Plane

22 Jointer Plane

22C Corrugated Bottom Jointer Plane

24 Jointer Plane

24C Corrugated Bottom Jointer Plane

29 Carriage Maker’s Iron Rabbet Plane

Sargent #29

29C Corrugated Bottom Carriage Maker’s Iron Rabbet Plane

30 Carriage Maker’s Iron Rabbet Plane

clip_image013

30C Corrugated Bottom Carriage Maker’s Iron Rabbet Plane

31 Rabbit Plane

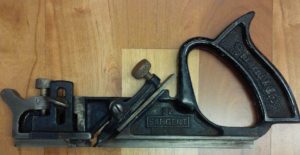

32 Dado & Rabbet Plane

#32

Sargent #32

Sargent #32

Sargent #32

33 Dado & Rabbet Plane

34 Dado & Rabbet Plane

#38-1 #38-2

35 Dado & Rabbet Plane

36 Dado & Rabbet Plane

37 Dado & Rabbet Plane

38 Dado & Rabbet Plane

42 Scraper Plane

clip_image014clip_image015

43 Scraper Plane

44 Scraper Plane

clip_image016

50 Box Scraper

clip_image017

51 Scraper

52 Scraper

clip_image018

53 Scraper Plane

clip_image019

54 Cabinet Scraper

clip_image020

57 Scraper Plane  (2 1.2″ wide)

clip_image021clip_image022

59 Scraper Plane (3″ wide)

clip_image023 IMG_20160211_103047511_HDRIMG_20160211_103033637_HDRIMG_20160211_103040212

60 Cast Iron Plane Knob

61 Router Plane

clip_image024clip_image025clip_image026

62 Router Plane

70 Box Scraper

73 Router Plane

74 Circular Plane

clip_image027clip_image028

76 Circular Plane

clip_image029clip_image030clip_image031clip_image032

79 Filletster & Rabbet Plane

clip_image033

81 Rabbet Plane

104 Block Plane

clip_image034clip_image035

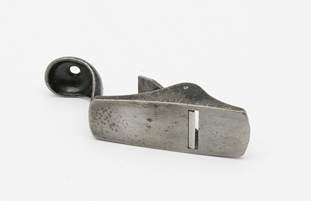

105 Block Plane

clip_image036

106 Block Plane

clip_image037

107 Block Plane

clip_image038

160 Roughing Plane (Solid Casting)

160 Roughing Plane

clip_image039

161 Roughing Plane (Solid Casting)

clip_image040clip_image041

161 Roughing Plane

162 Roughing Plane (Solid Casting)

162 Roughing Plane

186 Rabbet Plane

clip_image042

187 Rabbet Plane

188 Rabbet Plane

196 Rabbet Plane

clip_image043clip_image044clip_image045



197 Rabbet Plane

198 Rabbet Plane

206 Block Plane

clip_image046clip_image047clip_image048

207 Block Plane

clip_image049

208 Block Plane

clip_image050

217 Block Plane

clip_image051

227 Double End Block Plane

http://www.sargent-planes.com/61/sargent-no-227-double-block-plane/

clip_image052

306 Block Plane

306 type 2 Block Plane

clip_image053clip_image054clip_image055clip_image056clip_image057clip_image058clip_image059

306 Later Block

clip_image060

307 Block Plane

clip_image061

316 Block Plane

317 Block Plane

clip_image062

400 Adjustable Plane Handle

407 Smooth Plane

clip_image063

clip_image064

clip_image065

The last 407 is with brass inserts that were produced in limited runs sometime between 1927 and 1939.

407C Corrugated Bottom Smooth Plane

408 Smooth Plane

clip_image066

408C Corrugated Bottom Smooth Plane

clip_image067

409 Smooth Plane

clip_image068

409C Corrugated Bottom Smooth Plane

410 Smooth Plane

clip_image069clip_image070

410C Corrugated Bottom Smooth Plane

411 Jack Plane

sargent-411

411C Corrugated Bottom Jack Plane

414 Jack Plane

clip_image071clip_image072clip_image073

414C Corrugated Bottom Jack Plane

415 Jack Plane

415C Corrugated Bottom Jack Plane

418 Fore Plane

clip_image074

418C Corrugated Bottom Fore Plane

422 Jointer Plane

clip_image075clip_image076clip_image077

422C Corrugated Bottom Jointer Plane

424 Jointer Plane

clip_image078clip_image079clip_image080clip_image081

424C Corrugated Bottom Jointer Plane

505 Bull-Nose Rabbet Plane

clip_image082clip_image083clip_image084

507 Rabbet Block Plane



514 Low Angle Block Plane

Similar to Stanley #62. See Patrick’s Blood and Gore Sargent No. 514

clip_image086

600 Aluminum Smooth Plane

600 “Kenewa” Wooden Smooth Plane

601 “Kenewa” Wooden Jack Plane

604 “U.S.” Wooden Smooth Plane

605 “U.S.” Wooden Jack Plane

606 Low Angle Block Plane

clip_image088

607 Low Angle Block Plane

clip_image089

608 “Kenewa” Wooden Smooth Plane

609 “Kenewa” Wooden Jack Plane

610 “Kenewa” Wooden Fore Plane

611 “Kenewa” Wooden Jointer Plane

612 “U.S.” Wooden Smooth Plane

612-1/2 “U.S.” Wooden Razee Smooth Plane

613 “U.S.” Wooden Jack Plane

clip_image090clip_image091clip_image092

613-1/2 “U.S.” Wooden Razee Jack Plane

614 “U.S.” Wooden Fore Plane

614-1/2 “U.S.” Wooden Razee Fore Plane

615 “U.S.” Wooden Jointer Plane

615-1/2 “U.S.” Wooden Razee Jointer Plane

623 “U.S.” Wooden Side Bead Moulding Plane

624 “U.S.” Wooden Side Bead Moulding Plane

626 “U.S.” Wooden Centre Bead Moulding Plane

628 “U.S.” Wooden Reeding Plane

632 “U.S.” Wooden Nosing or Step Plane

633 “U.S.” Wooden Nosing or Step Plane

633-1/2 “U.S.” Wooden Nosing or Step Plane

638 Wooden Dado Plane

639 Wooden Dado Plane

646 Wooden Filletster Plane

647 Wooden Filletster Plane

648 Wooden Filletster Plane

649 Wooden Filletster Plane

650 Wooden Filletster Plane

651 Wooden Filletster Plane

655 Wooden Rabbet Plane

657 Wooden Rabbet Plane

659 Wooden Rabbet Plane

660 Wooden Rabbet Plane

663 Wooden Hollow and Round Planes

671 Wooden Match Plane

672 Wooden Match Plane

673 Wooden Match Plane

674 Wooden Match Plane

675 Wooden Match Plane

676 Wooden Match Plane

678 Wooden Match Plane

681 Wooden Match Plane

682 Wooden Match Plane

695 Wooden Sash Plane

695-1/2 Wooden Sash Plane

704 “U.S.” Wooden Plain Ogee Plane

707 Auto-Set Smooth Plane

707C Corrugated Bottom Auto-Set Smooth Plane

707 “U.S.” Wooden Reverse Ogee and Square Plane

707-1/2 “U.S.” Wooden Roman Reverse Ogee Plane

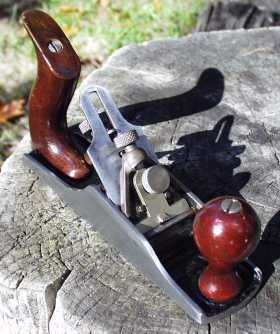

708 Auto-Set Smooth Plane

clip_image093

708C Corrugated Bottom Auto-Set Smooth Plane

708 “U.S.” Wooden Grecian Ogee Plane

709 “U.S.” Wooden Grecian Ogee and Bevel Plane

709-1/2 “U.S.” Wooden Grecian Ogee and Bead Plane

710 Auto-Set Smooth Plane

clip_image094

710C Corrugated Bottom Auto-Set Smooth Plane

711 Auto-Set Jack Plane

clip_image095

711C Corrugated Bottom Auto-Set Jack Plane

714 Auto-Set Jack Plane

clip_image096

714C Corrugated Bottom Auto-Set Jack Plane

717 “U.S.” Wooden Scotia or Quarter Round Plane

717-1/2 “U.S.” Wooden Quarter Round or Casing Plane

717-3/4 “U.S.” Wooden Casing Moulding Plane

718 Auto-Set Fore Plane

clip_image097

718C Corrugated Bottom Auto-Set Fore Plane

clip_image098

719 “U.S.” Wooden Cove Plane

722 Auto-Set Jointer Plane

clip_image099

722C Corrugated Bottom Auto-Set Jointer Plane

clip_image100clip_image101clip_image102clip_image103clip_image104

730 “U.S.” Wooden Grooving Plow Plane

732 “U.S.” Wooden Grooving Plow Plane

734 “U.S.” Wooden Grooving Plow Plane

735 “U.S.” Wooden Grooving Plow Plane

736 “U.S.” Wooden Grooving Plow Plane

738 “U.S.” Wooden Grooving Plow Plane

743 “U.S.” Wooden Grooving Plow Plane

904 Selected Bench Plane (Handled Smoother)

905 Selected Bench Plane (Handled Jack)

906 Selected Bench Plane (Handled Fore)

923 Wooden Ship Smooth Plane

924 Wooden Ship Razee Jack Plane

925 Wooden Ship Razee Fore Plane

926 Wooden Ship Razee Jointer Plane

927 Wooden Ship Spar Plane

930 Wooden Tooth Plane

931 Wooden Mitre Square Plane

932 Wooden Mitre Smooth Shape Plane

934 Wooden Mitre Smooth Shape Plane

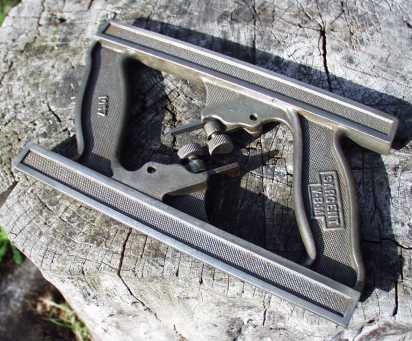

1066 Matching Plane

1067 Matching Plane

clip_image105

1068 Matching Plane

1074 Circular Plane

1080 Combination Plane

1080 Combination Plane (Stanley Made)

1080 – PB Combination Plane

1085 Combination Plane

1107 Block Plane

1107 Hercules Low-Price Brand Block Plane

1107 Hercules Golden Cutter Block Plane

1206 Block Plane

1207 Block Plane

1216 Block Plane

1217 Block Plane

1217 Hercules Golden Cutter Block Plane

1306 Block Plane

clip_image106

1307 Block Plane

1316 Block Plane

1317 Block Plane

1408 Smooth Plane

1408 Hercules Low-Price Brand Smooth Plane

clip_image107

1408 Hercules Golden Cutter Smooth Plane

1408 Smooth Plane

1409 Hercules Low-Price Brand Smooth Plane

clip_image108

1409 Hercules Golden Cutter Smooth Plane

1409 Smooth Plane

1409C Hercules Low-Price Brand Smooth Plane

1414 Hercules Low-Price Brand Jack Plane

clip_image109

1414 Hercules Golden Cutter Jack Plane

1414 Jack Plane

1414C Hercules Low-Price Brand Jack Plane

1506 Bull-Nose Rabbet Plane

1506-1/2 Bull-Nose Rabbet Plane

clip_image110clip_image111

1507 Bull-Nose Rabbet Plane

clip_image112

1507-1/2 Bull-Nose Rabbet Plane

clip_image113

1508 Bull-Nose Rabbet Plane (Lady Bug Rabbit Plane)

1508-1/2 Bull-Nose Rabbet Plane

clip_image114

1509 Bull-Nose Rabbet Plane

1509-1/2 Bull-Nose Rabbet Plane

1606 Low Angle Block Plane

clip_image115

1607 Low Angle Block Plane

clip_image116

2204 All-Steel Block Plane

clip_image117

3407 Wood Bottom Smooth Plane

clip_image118

3408 Wood Bottom Smooth Plane

clip_image119

3409 Wood Bottom Smooth Plane

clip_image120

3410 Wood Bottom Smooth Plane

clip_image121

3411 Wood Bottom Smooth Plane

clip_image122

3412 Wood Bottom Smooth Plane

clip_image123

3415 Wood Bottom Jack Plane

clip_image124

3416 Wood Bottom Jack Plane

3417 Wood Bottom Jack Plane

clip_image125

3418 Wood Bottom Fore Plane

3420 Wood Bottom Fore Plane

clip_image126

3422 Wood Bottom Jointer Plane

3424 Wood Bottom Jointer Plane

clip_image127

3426 Wood Bottom Jointer Plane

clip_image128

3428 Wood Bottom Jointer Plane

3430 Wood Bottom Jointer Plane

4206 All-Steel Low Angle Block Plane

clip_image129

4302 Rabbet Plane Block Plane, bronze cap, just like the Lie Neilson and based on the Sargent 507, 6 1/4″ long & 1 3/4″ wide with a 12 degree bedded blade, iron body and 1/8″ thick cutter.

4306 Knuckle Joint Block Plane

clip_image130clip_image131clip_image132clip_image133

4307 Knuckle Joint Block Plane

clip_image134

a type 2 (1910-1918) Sargent No. 4307

5206 All-Steel Low Angle Block Plane

clip_image135clip_image136clip_image137clip_image138

5217 Block Plane

5306 Knuckle Joint Block Plane

5307 Knuckle Joint Block Plane

clip_image139

The  #5400 Series of bench planes was very short lived and lasted just 3-years, from  1907 thru 1909.

5407 Corrugated Bottom Smooth Plane

5408 Corrugated Bottom Smooth Plane

5409 Corrugated Bottom Smooth Plane

clip_image140clip_image141





5410 Corrugated Bottom Smooth Plane

5414 Corrugated Bottom Jack Plane

5418 Corrugated Bottom Fore Plane

5422 Corrugated Bottom Jointer Plane

5424 Corrugated Bottom Jointer Plane

5607 Low Angle Knuckle Joint Block Plane

clip_image142

Sargent 5607

6408 Smooth Plane

The Sargent 6408 is a fairly rare hand plane. (click here for more)

clip_image143clip_image144clip_image145clip_image146clip_image147clip_image148clip_image149clip_image150clip_image151clip_image152clip_image153
